¡CSM Turbo Mixer
|
|
|
|
| |

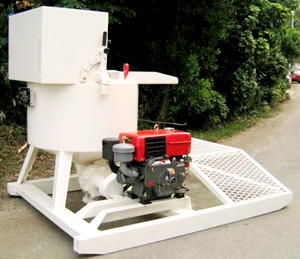

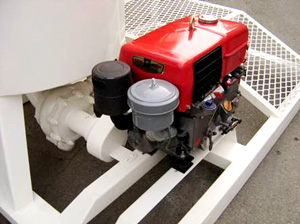

TM Turbo Mixer - Engine Powered
|
| |
"TM"
TURBO MIXER
|
 |
| TM series of Turbo Mixer is a compact
yet fully integrated Turbo Mixer
complete with Water Measuring Tank and Agitator Tank. |
| Such Mixers are most suitable for job
sites with restricted access or
limited deployment space like tunnel construction site. |
Though we can produce the mixers in
capacities specified by customers,
the standard production capacities are
TM500-we. The letters in the model
represents W as water tank and E as Agitator
|
FEATURES
|
|
| 1. |
TM
Turbo Mixer is consisted of a tank with conical bottom, electric motor
driven impeller unit, water inlet, mixer inlet and outlet. |
| 2. |
Engine
driven impeller mixer pump with specially designed impellers with high
quality steel delivers a fast and homogenous mix grout slurry. |
| 3. |
Water measuring tank with mechanism
to pre-set the desired volume of
water for each mix. |
| 4. |
The unit is built on rugged steel
skid frame. |
| 5. |
Foot step and working platform for
operator to access and work
safely on the mixer. |
| 6. |
Electrical control panel with button
controls. |
| ADVANTAGES |
| Impeller Pump |
|
|
| 1. |
Special Water Tank with measuring
mechanism enables accurate mix. |
| 2. |
High
speed motor impeller pump with conical bottom mixer tank ensures proper
mix and thus minimizing segregation or formation of air pockets in the
mixture. |
| 3. |
The compact design enables easy
transportation and is ready for use at site by connecting to electric
power source. |
|
Mixer Outlet |
|
|
|
|
|
|
|
|
| |

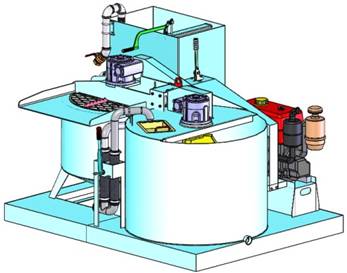

TM 500we / TM 500-wAe
|
|
|
|
|
|
|
TM500-we
|
TM500-wAe |
TM-w-e Series :-
Engine powered Mixer with water measuring tank only.
|
TM-wA-e Series :-
This series of mixers are integrated unit with Water
Measuring Tank (W) and Agitator Tank (A).
It is engine powered. |
|
These mixers can mix cement grouts and mortar to high mixing
ratio of water/cement ¡V 0.35. These units are designed for
high efficiencyand easy maintenance. Qually material are
used for heavy duty work and durability. |
|
| |
|
|
|
| Model |
Units |
TM500-we |
TM500-wAe |
| MIXER |
|
| Outer Diameter |
mm |
1000 |
1060 |
| Height |
mm |
550 |
850 |
| Volume |
Liter |
500 |
500 |
| Mix Volume / Batch |
Liter |
350 |
350 |
| Mixer Inlet |
mm |
2-1/2" |
2-1/2" |
| Mixer Out |
mm |
2-1/2" |
2-1/2" |
| Engine Power |
HP |
10.5 |
19 |
| Rotation |
rpm |
2400 |
2400 |
| Water Measuring Tank |
Liter |
200 |
200 |
| Length |
mm |
860 |
860 |
| Width |
mm |
560 |
560 |
| Height |
mm |
580 |
580 |
| Agitator Tank |
|
| Volume |
Liter |
|
1000 |
| Outer Diamater |
mm |
1200 |
1400 |
| Height |
mm |
1000 |
770 |
| Reducer Gear Ratio |
|
|
60/1 |
| Rotation |
rpm |
|
20 |
| Overall
Dimension |
|
| Length |
mm |
2260 |
2260 |
| Width |
mm |
1670 |
1620 |
| Height |
mm |
1830 |
2420 |
| Gross Weight |
kg |
600 |
1280 |
|
| |
Due
to continuous product development and improvement, manufacturer
reserves the right to change the specifications without prior notice. |
|
|
|
|
|
|
|
|
TM Turbo Mixer
|
¡¥TM'
TURBO MIXER
TM series of Turbo Mixer is a compact yet fully integrated Turbo Mixer
complete with Water Measuring Tank and Agitator Tank.
Such Mixers are most suitable for job sites with restricted access or
limited deployment space like tunnel construction site.
Though we can produce the mixers in capacities specified by customers,
the standard production capacities are TM350-wA, TM500-wA and TM1000-wA.
The letters in the model represents W as water tank and
A as Agitator |

  |
| FEATURES |
| 1. |
TM
Turbo Mixer is consisted of a tank with conical bottom, electric motor
driven impeller unit, water inlet, mixer inlet and outlet. |
| 2. |
Vertically
mounted mixer rotor shaft built with special steel to withstand high
speed rotation of 1550rpm coupled with the impeller pump delivers a
fast and homogenous colloidal mix of grout. |
| 3. |
Special water measuring tank with
mechanism to set the desired volume of water for each mix. |
| 4. |
Agitator tank with electric motor
powered rotating shaft to maintain the mix so that it may not set.
|
| 5. |
The unit is built on rugged steel
skid frame. |
| 6. |
Foot step and working platform for
operator to access and work safely on the mixer. |
| 7. |
Electrical control panel with button
controls. |
ADVANTAGES |
| 1. |
Special Water Tank with measuring
mechanism enables accurate mix. |
| 2. |
High
speed motor impeller pump with conical bottom mixer tank ensures proper
mix and thus minimizing segregation or formation of air pockets in the
mixture. |
| 3. |
The compact design enables easy
transportation and is ready for use at site by connecting to electric
power source. |
|
|
|
|
| TM500-wA |
TM500-w |
TM500 |
TM - wA Series :-
This series of mixers are integrated unit with Water Measuring Tank (W)
and Agitator Tank (A). |
TM - w Series :-
Mixer with water measuring tank only. |
TM Series :-
Mixer only. Water
measuring tank and agitator are separate units. |
| All
our mixers are designed for mixing cement grouts and mortar to high
mixing ratio of water/cement ¡V 0.35. The unit is built with quality
steel and material that are strong, durable and lasting.
|
|
Model
|
Units |
TM350-wA |
TM500-wA |
TM350-w |
TM500-w |
TM350 |
TM500 |
|
MIXER
|
|
|
Outer
Diameter
|
mm |
850 |
850 |
850 |
1000 |
850 |
1000 |
|
Height
|
mm |
550 |
950 |
550 |
550 |
550 |
550 |
|
Volume
|
Liter |
350 |
500 |
350 |
500 |
350 |
500 |
|
Mix
volume / batch
|
Liter |
280 |
400 |
280 |
400 |
280 |
400 |
|
Mixer
Inlet
|
mm |
Ø 2.0 |
Ø 2.0 |
Ø 2.0 |
Ø 2.0 |
Ø 2.0 |
Ø 2.0 |
|
Mixer
Outlet
|
mm |
Ø
2.0 |
Ø
2.0 |
Ø
2.0 |
Ø
2.0 |
Ø
2.0 |
Ø
2.0 |
|
Electric
Motor Power
|
hp |
3 hp / 4p |
5 hp / 4p |
3 hp / 4p |
5 hp / 4p |
3 hp / 4p |
5 hp / 4p |
|
Rotation
50/60 Hz
|
rpm |
1435
/ 1730 |
1445
/ 1730 |
1435
/ 1730 |
1445
/ 1730 |
1435
/ 1730 |
1445
/ 1730 |
|
Water
Measuring Tank
|
Liter |
145 |
145 |
145 |
200 |
|
|
|
Length
|
mm |
700 |
700 |
700 |
860 |
|
|
|
Width
|
mm |
450 |
450 |
450 |
560 |
|
|
|
Height
|
mm |
530 |
530 |
530 |
580 |
|
|
|
Agitator
Tank
|
|
|
Volume
|
Liter |
1000 |
1000 |
|
|
|
|
|
Outer
Diameter
|
mm |
1200 |
1200 |
|
|
|
|
|
Height
|
mm |
950 |
950 |
|
|
|
|
|
Electric
Motor Model
|
|
TECO 100L |
TECO 100L |
|
|
|
|
|
Power
|
HP |
3
hp / 4p |
3
hp / 4p |
|
|
|
|
|
Rotation
50/60 Hz
|
rpm |
25/30 |
25/30 |
|
|
|
|
|
Electric
Power Supply
|
220V / 60 Hz / 415V / 50 Hz |
|
Overall
Dimension
|
|
|
Length
|
mm |
2100 |
2100 |
1750 |
1950 |
1750 |
1950 |
|
Width
|
mm |
1750 |
1750 |
860 |
1200 |
860 |
1200 |
|
Height
|
mm |
1600 |
1820 |
1350 |
1550 |
1350 |
1500 |
|
Gross
Weight
|
kg |
650 |
820 |
380 |
500 |
350 |
450 |
Due
to continuous product development and improvement, manufacturer
reserves the right to change the specifications without prior notice.
|
|
|
|
|
|
|
|
| |

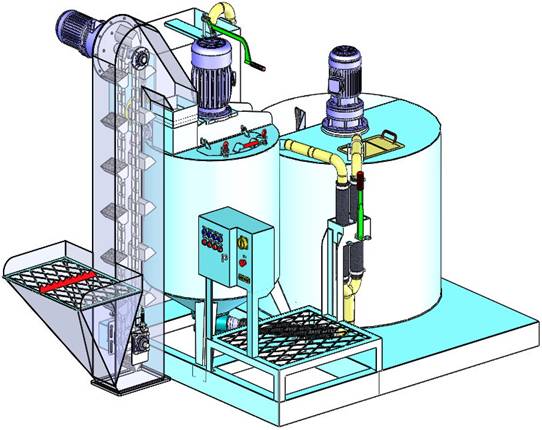

TM 500-wA-SC/VC
|
|
|
|
| |
|
|
|
| TM500-wA-
SC / VC |
TM - wA-SC / VC Series :-
This series of
mixers are integrated unit with Water Measuring Tank (W) and Agitator
Tank (A), Spiral elevator / Bucket elevator. |
| These
mixers can mix cement grout and mortar to high mixing ratio of
water/cement by weight-0.35. These units are designed for high
efficiency and easy maintenance. Quality material are used for heavy
duty work and durability. |
|
| |
|
|
|
|
Model
|
Units |
TM -
500wA- SC / VC |
|
MIXER
|
|
|
Outer
Diameter x Height
|
mm |
¡í1060 X 850 |
|
Volume
|
Liter |
500 |
|
Electric Motor Power (50/60Hz)
|
hp |
5hp / 4p |
|
Rotation
(50/60Hz)
|
rpm |
1445
/ 1745 |
|
Water
Measuring Tank
|
Liter |
200 |
|
Length
x Width x Height
|
mm |
860
x 560 x 580 |
|
Agitator
Tank
|
Liter |
1000 |
|
Outer
Diameter x Height
|
mm |
¡í1400 x 770 |
|
Volume
|
Liter |
1000 |
|
Electric
Motor Power (50/60Hz)
|
hp |
2hp
/ 1/50 |
|
Overall
Dimension -Length
x Width x Height
|
mm |
3500 x
2150 x 1880 |
|
Gross
Weight
|
kg |
3200 |
|
Transport
Tube Overall Dimension
|
mm |
¡í219 x 3200 |
|
Transport
Tube - Electric Motor Power (50/60Hz) / Rotation
|
hpp / rpm |
5hp
4p / 38 |
|
| |
Due
to continuous product development and improvement, manufacturer
reserves the right to change the specifications without prior notice.
|
|
|
|
|
|
|
| |

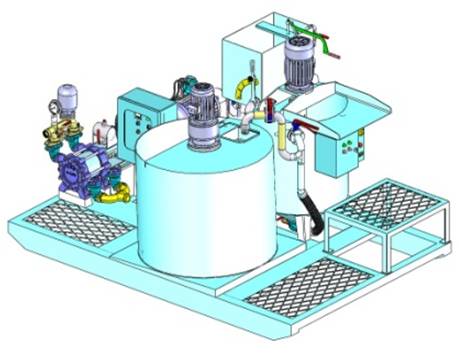

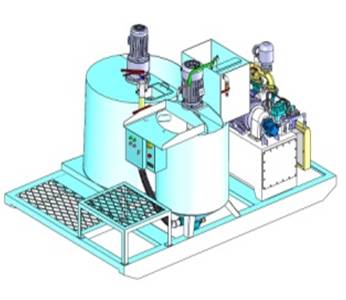

TM-500 wA - P
|
|
|
|
|
|
| TM-500
wA - P |
TM-500 wA - P Series :-
This series of
mixers are integrated unit with Water Measuring Tank (W) and Agitator
Tank (A) Grouting Pumps (P). |
| These
mixers can mix cement grout and mortat to high mixing ratio of
water/cement by weight-0.35. These units are designed for high
efficiency and easy maintenance. Quality material are used for heavy
duty work and durability. |
|
|
|
|
| |
| Model |
Units |
TM-500wA-P |
| MIXER |
|
| Outer
Diameter x Height |
mm |
1060 x 850
|
| Volume |
Liter
|
500 |
| Electric
Motor Power (50/60 Hz) |
hp
|
5hp / 4p |
|
Rotation 50 /
60Hz |
rpm
|
1445 /1730 |
| Water
Measuring Tank
|
Liter |
200 |
| Length
x Width x Height |
mm |
860 x 560 x 580 |
| Agitator
Tank |
|
| Outer
Diameter x
Height |
mm |
1400 x
770 |
| Volume |
Liter |
1000 |
| Electric
Motor Power (50/60 Hz) |
hp
|
2hp / 1/50 |
| Overall
Dimension |
|
| Length x
Width x Height |
mm |
3500 x 2150 x
1880 |
| Gross Weight |
kg
|
3200 |
|
| Model |
C300 |
|
|
| Electric
System |
220V / 380V / 415V 50Hz /
60Hz |
| Electric Motor |
15hp x 4P / 1460 / 1760 rpm |
| Hyd.Cyl Ø(mm) |
Ø90 |
Ø100 |
Ø130 |
| Cylinder Stroke (mm) |
120 |
120 |
120 |
| Piston Ø(mm) |
Ø200 |
Ø150 |
Ø200 |
Ø150 |
Ø200 |
Ø150 |
| Pump Strokes / min |
71 |
71 |
55 |
55 |
30 |
30 |
| Max Press (Bar) |
15 |
20 |
35 |
60 |
80 |
100 |
Max Flow Rate (liter/min)
(theoritical x 85% efficiency) |
262 |
145 |
203 |
112 |
110 |
61 |
Max Flow Rate (liter/min)
(theoritical x 85% efficiency) |
222 |
123 |
172 |
95 |
93 |
52 |
Overall Dimension
(L x W x H) (mm) |
1600 x 1200 x 1250 |
| Overall Weight (kg) |
855 |
|
|
|
Due
to continuous product development and improvement, manufacturer
reserves the right to change the specifications without prior notice. |
|
|
|
|
|
|
| |
MDT-500
|
|
|
|
|
|
|
MDT-500
|

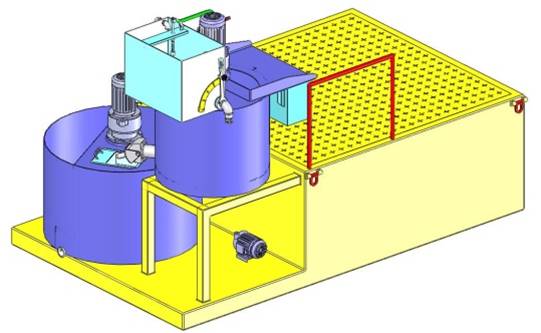

MDT-500 Series :-
This series of mixers are
integrated unit with Water Measuring Tank (W) and Agitator
Tank (A). |
|
These mixers can mix cement grout and mortat to high mixing
ratio of water/cement by weight-0.35. These units are
designed for high efficiency and easy maintenance. Quality
material are used for heavy duty work and durability. |
|
Model |
Units |
MDT-500 |
|
MIXER |
|
|
Outer Diameter x Height |
mm |
900 x 600
|
|
Volume |
Liter
|
650 |
|
Electric Motor Power (50/60 Hz) |
hp
|
3hp / 1/4 |
|
Rotation 50 / 60Hz |
rpm
|
1445 /1730 |
|
Water Measuring Tank
|
Liter |
200 |
|
Length x Width x Height |
mm |
860 x 560 x 580 |
|
Agitator Tank |
|
|
Outer Diameter x Height |
mm |
1250 x 850 |
|
Volume |
Liter |
1000 |
|
Electric Motor Power (50/60 Hz) |
hp
|
2hp / 1/50 |
|
Water Motor Power (50/60 Hz) |
hp
|
2hp / 4P |
|
Water Tank |
Cu.m
|
4 |
|
Overall Dimension |
|
| Length x Width x Height |
mm |
3200 x 2050 x 2300 |
|
Gross Weight |
kg
|
2700 |
|
|
| |
Due
to continuous product development and improvement, manufacturer
reserves the right to change the specifications without prior notice. |
|
|
|
|
|
|
| |
TM-1000 / 1200 / 1500-W
|
|
|
|
| |
|
|
|
| TM-1000
/ 1200 / 1500 - W |

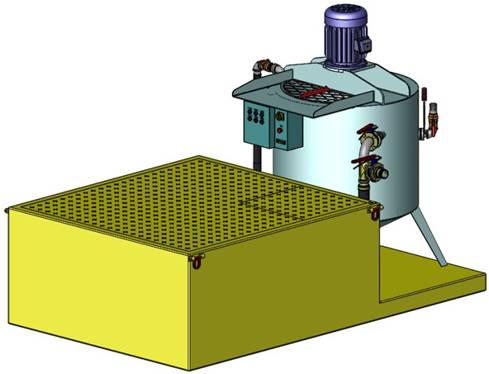

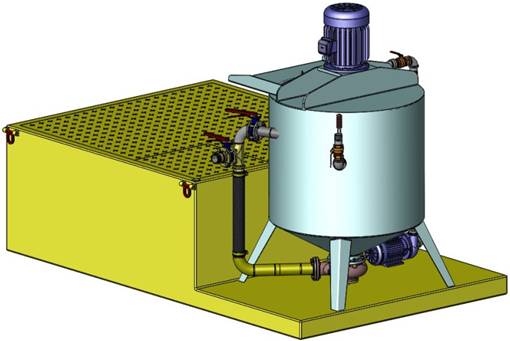

TM - W Series :-
This series of
mixers are integrated unit with Water Measuring and Agitator Tank (A). |
| These
mixers can mix cement grout and mortat to high mixing ratio of
water/cement by weight-0.35. These units are designed for high
efficiency and easy maintenance. Quality material are used for heavy
duty work and durability. |
|
| |
|
|
|
| Model |
Units |
TM-1000-W |
TM-1200-W |
TM-1500-W |
| MIXER |
|
| Outer
Diameter x Height
|
mm |
1200 x 900
|
1200 x 1100 |
1300 x 1050 |
| Volume
|
Liter
|
1000 |
1200 |
1500 |
| Electric
Motor Power (50/60 Hz)
|
hp
|
15hp / 4p |
20hp / 4p |
25hp / 4p |
|
Rotation (50/60
Hz) |
rpm
|
1460 /1760 |
1465 /1760 |
1455 /1760 |
| Water
Motor Power (50/60
Hz)
|
hp |
2hp / 4P |
3hp / 4P |
3hp / 4P |
| Water
Tank |
Cu.m |
4 |
4 |
4 |
| Overall Dimension |
mm |
1950 x 2100 x 1000 |
1950 x 2100 x 1000 |
3000 x 2200 x 1000 |
| Length
x Width x Height |
mm |
3500 x 2250 x 2330 |
3500 x 2250 x 2350 |
4450 x 2260 x 2280 |
| Gross Weight
|
kg
|
1.700 |
1.750 |
2.500 |
|
| |
Due
to continuous product development and improvement, manufacturer
reserves the right to change the specifications without prior notice. |
|
|
|
| |
|
