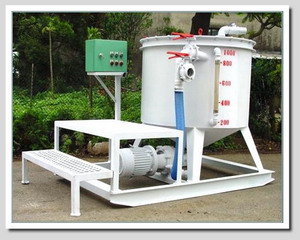

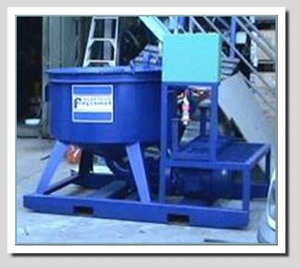

SM Turbo Mixer

TYPE : ¡¥SM' TURBO MIXER

SM series of Turbo Mixers are designed for larger capacities. In most cases the water tank and agitators are separate units.
The patented design enables the mixer to handle water/cement weight ratio as viscous as 0.35.The table below. There 3 range of models available:-

¡@
FEATURES:-
1. Conical bottom Turbo Mixer with electric motor driven impeller turbo pump with water supply inlet.
2. Inlet and outlet Valves.
3. Cement bag cutter on the top of the mixer tank.
4. Rugged steel skid frame.
5. Foot step and working platform for operator to access and work safely on the mixer
6. Electrical control panel with button controls.
¡@

ADVANTAGES
1. High speed motor impeller pump with conical bottom mixer tank ensures proper mix and thus minimizing segregation or formation of air pockets in the mixture.
2. Ability to mix water/cement grout ration of 0.35 and mortar with granular material up to 5mm size.
3. Though designed for bigger capacities, yet it's compact design enables easy transportation and is ready for use at site by connecting to electric power source.
¡@

¡@


 ¡@

SPECIFICATION
UNIT
SM500
SM800
SM1000
Mixer Tank Volume
liter
500
800
1000
Mix Capacity / batch
liter
400
650
800
Electric Motor Power
hp
20hp/4p
20hp/4p
20hp/4p
Rotation 50/60Hz
rpm
1465 / 1755
1465 / 1755
1465 / 1755
Delivery output pressure
bar
2
2
2
Length
mm
1800
2000
2000
Width
mm
1150
1350
1350
Height
mm
1200
1200
1450
Weight
kg
680
730
750

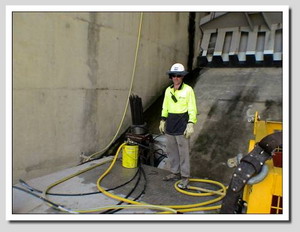

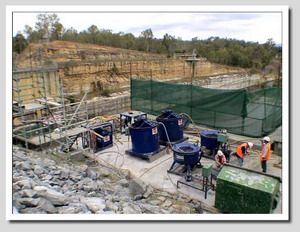

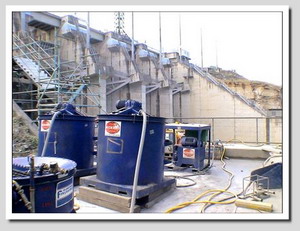

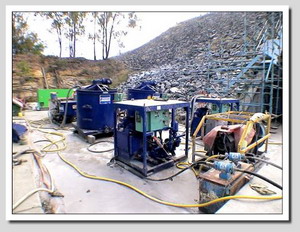

SM800, Agitator & C300 Pumps in Australian Jobsite
¡@

¡@

¡@

¡@
